22kw App Wall EV Chargers OEM Wallbox EV Charger Station Type 2

Product Categories
Shenzhen Hongju Electronics Co.,Ltd.
Contact Now

22kw App Wall EV Chargers OEM Wallbox EV Charger Station Type 2

Brand Name : HONGJU

Model Number : HJ-EV-WE-01

Certification : ETL,TUV,CCC,ROHS,REACH

Place of Origin : Guangdong, China

MOQ : 500

Price : To be negotiated

Payment Terms : T/T

Supply Ability : 100000PCS Per Month

Delivery Time : 30-40 days

Packaging Details : Each in inner carton box, then 1 inner carton into 1 master carton

Interface Standard : Type 2

Output Current : AC

Charging cable : 5M Type 2 (TPU Jacket)

Warranty : 2 years (both cable and station)

Start mode : RFID card swipe / APP optional

Contact Now

OEM ODM High Quality 22kw App Wallbox EV Charger Station Type 2 For Electric Car

TYPE 2 Charger Model & Spec
Model No.
Input Voltage
Power
Rated Current
Certificate
EV-WE-01-7
250V
7kW
32A/1 Phase
CE, ROHS,UKCA
EV-WE-01-11
480V
11kW
16A/3 Phase
CE, ROHS,UKCA
EV-WE-01-22
480V
22kW
32A/3 Phase
CE, ROHS,UKCA

Certificates & QC
ETL,TUV,CCC,ROHS,REACH
Protection rank
IP55 Cable; IP54 Station
Optional
Wi-Fi / Blue-booth / App
RCD
type B (30mA AC + 6mA DC)
Input power
250V max
Charging cable
5M Type 2 (TPU Jacket)
Power cord
open ready to wire into electricity
Start mode
RFID card swipe / APP / Plug and Play(opt)
ICCB size
180x180x85 (mm)
Warranty
2 years (both cable and station)
Operating temperature
-30℃~+50℃

Features

With Emergency stop button, Product conforms to Low Voltage Directive 2014/35/EU,IEC 61851-1:2019 IP55 cable,IP54

station,Weather proof;Leakage current protection;Impact resistance

Charging status and working error simply displayed by LED indicators and LCD screen.

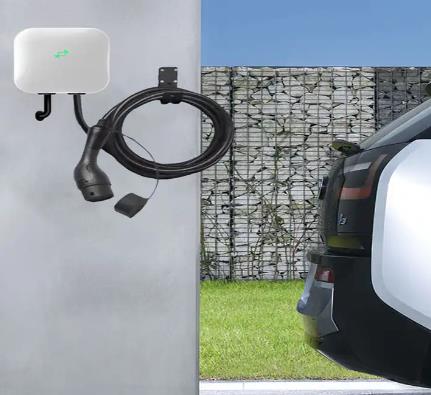

22kw App Wall EV Chargers OEM Wallbox EV Charger Station Type 2

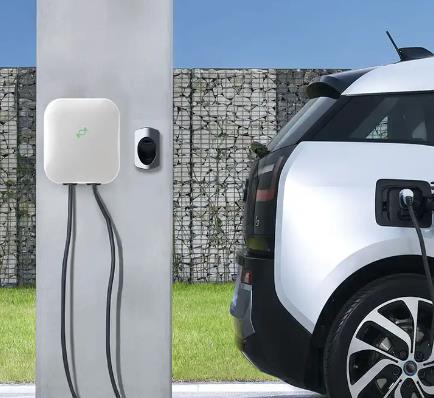

22kw App Wall EV Chargers OEM Wallbox EV Charger Station Type 2

How to make Order

Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.

FAQ
1. What's the rated of EV Charging Cable you have?
Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A
2. Can I print my own logo?
Yes MOQ 100pcs. There is no extra fee.
3. Can I customzie different color for the connector or cable?
Yes of course. MOQ 500pcs.
4. How is the warranty?
Same Q'ty good cables compensation against same Q'ty bad ones
5. How long is the lead time?
For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.
6.Can I visit your company before placing the Order.
Yes. You can visit any time.
