OEM / ODM Wall EV Chargers Type 2 Wallbox Home EV Charging Station

Name: OEM ODM Wall EV Chargers Type 2 Wallbox Home EV Charging Station
Brand: HONGJU
Price: 1 USD

Wholesale OEM / ODM Wall EV Chargers Type 2 Wallbox Home EV Charging Station from china suppliers

Brand Name : HONGJU

Model Number : HJ-EV-WE-05

Certification : ETL,TUV,CCC,ROHS,REACH

Place of Origin : CHINA

MOQ : 200

Price : To be negotiated

Payment Terms : T/T

Supply Ability : 100000PCS Per Month

Delivery Time : 30-40 days

Packaging Details : Each in inner carton box, then 1 inner carton into 1 master carton

Output Power : 7kW/11KW/22KW

Input Voltage : 250-480V

Plug Type : Type 2

Product Name : Wall EV Chargers

Protection : Overload, Overvoltage, Short Circuit

Warranty : 2 Years

Contact Now

OEM / ODM Wall EV Chargers Type 2 Wallbox Home EV Charging Station

Model & Spec.
Model Number	Standard	Rated Voltage	Rated Power	Rated Current
EV-WE-05-7	IEC 62196 TYPE 2	AC 250V	7KW	32A/1Phase
EV-WE-05-11	IEC 62196 TYPE 2	AC 480V	11KW	16A/3Phase
EV-WE-05-22	IEC 62196 TYPE 2	AC 480V	22KW	32A/3Phase

Certificates & QC	CE, UKCA, ROHS,ISO

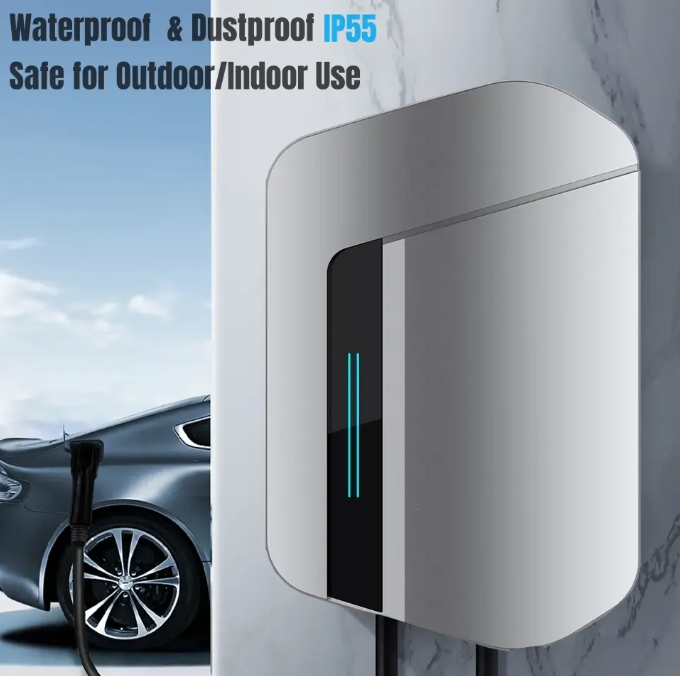

Protection rank	IP55 Cable; IP54 Station
LCD display	without screen & with screen(opt)
RCD	type B (30mA AC + 6mA DC)
Power cord	open ready to wire into electricity
Charging cable	5M Type 2 (TPU Jacket) or customization
LED indicator	R/G/B
Start mode	RFID card swipe / APP / Plug and Play(opt)
Station size	265x170x80 (mm)
Warranty	2 years (both cable and station)
lead time	30-35 days after deposit payment
Payment Terms	T/T(30% advanced payment ,the rest 70% balance should be paid before shippment)
Electrical Protection	Over current protection, Residual current protection, Ground protection, Surge protection Over/Under voltage protection, Over/Under frequency protection, Over temp protection
Materials Applied	Shell: by thermoplastic PC940. Anti-corrosion and abrasion protection. UV coating Cable: 5.0M in black with TPU jacket. With CE issued by TUV and TUV mark.
Customizing Logo	Logo put on shell by laser on station box or cable head
Package	Each in inner carton box with blister inner tray, then 2 inner cartons into 1 master carton
Features	Product conforms to Low Voltage Directive 2014/35/EU, IEC61851-1:2019 IP55, Weather proof; Leakage current protection; Impact resistance Charging status and working error simply displayed by LED indicators and LCD screen

OEM / ODM Wall EV Chargers Type 2 Wallbox Home EV Charging Station

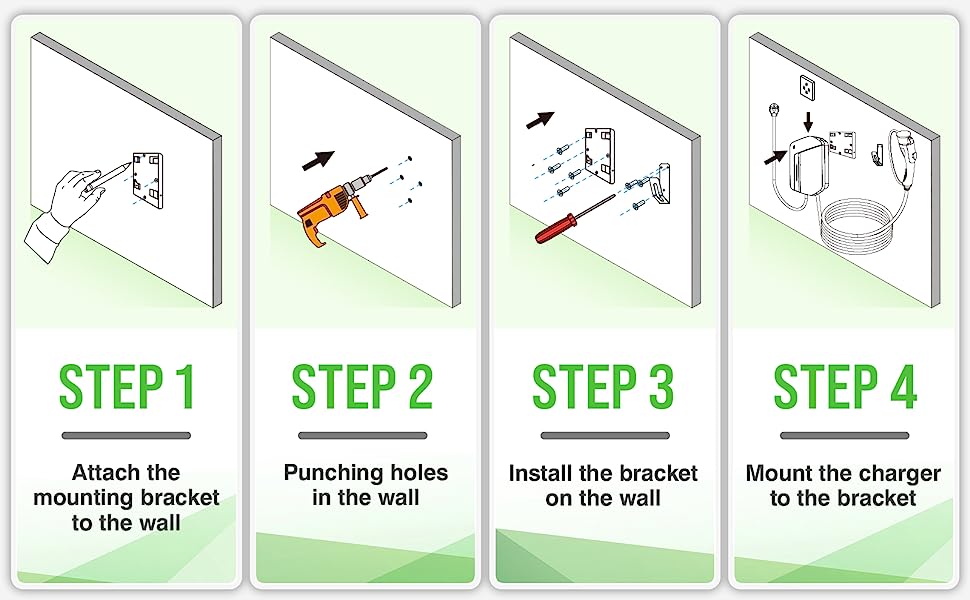

Super easy to install

OEM / ODM Wall EV Chargers Type 2 Wallbox Home EV Charging Station

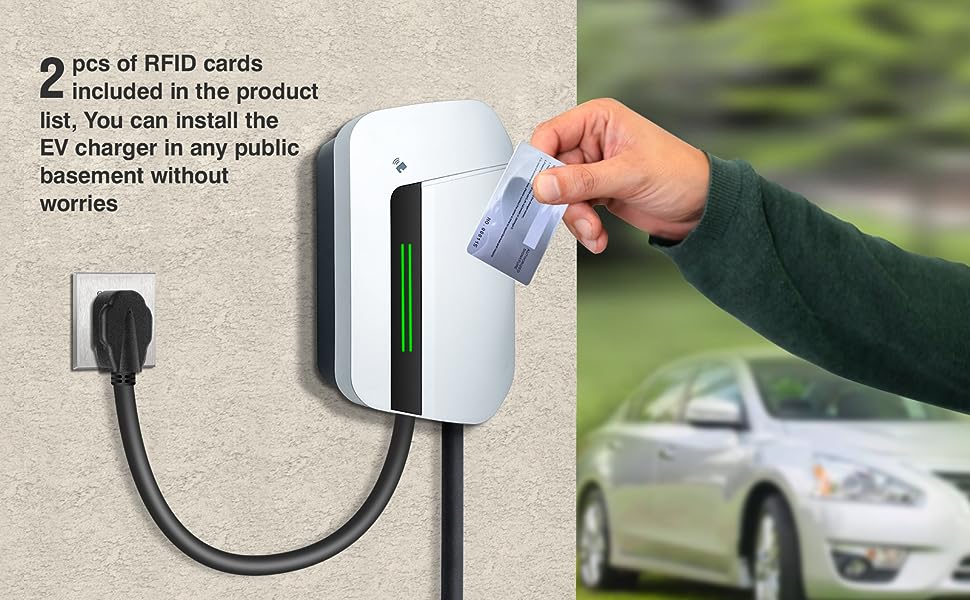

Make your charger private

When installing a charging pile in a public area, you have to consider the privacy of your charging pile, then owning an RFID card would be a perfect solution
2 pieces of RFID card included

How to make Order

Please send us an email to specify the item, quantity, color or other specification to place an order.

1. Contact us via website. e-mail. whatsapp etc contacting tools, confirm the model & quantity you want to order with us.

2. Contract will be sent to you.
3. You check the contract and make payment.
4. Package will be delivered to you once we receive the payment.

FAQ

1. What's the rated of EV Charging Cable you have?

Single phase16A / Single phase 32A / Three phase 16A / Three phase 32A

2. Can I print my own logo?

Yes MOQ 100pcs. There is no extra fee.

3. Can I customzie different color for the connector or cable?

Yes of course. MOQ 500pcs.

4. How is the warranty?

Same Q'ty good cables compensation against same Q'ty bad ones

5. How long is the lead time?

For sample order, we can ship in 2 to 5 days. For mass order, around 15 to 30 days.

6.Can I visit your company before placing the Order.

Yes. You can visit any time.
